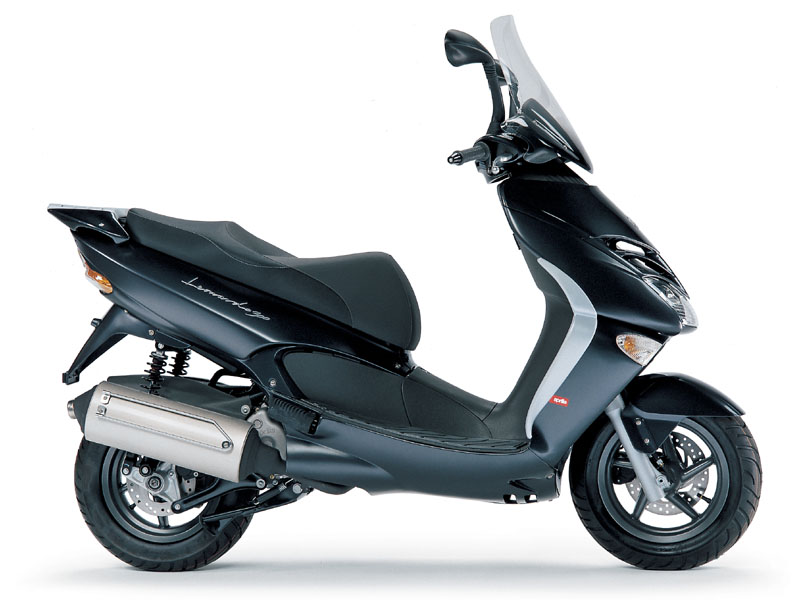

Aprilia Leonardo 300 2004 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2004 , Category : Scooter , Type : 264.5 cc, liquid cooled, single cylinder, 4-stroke , Bore x stroke (mm) : 71 mm x 66.

Details:

Aprilia Leonardo 300 2004 motorcycles specifications
read comments (-)	\|	add comments

Year

2004

Category

Scooter

Type

264.5 cc, liquid cooled, single cylinder, 4-stroke

Bore x stroke (mm)

71 mm x 66.8 mm

Compression ratio

10:1

Valves

SOHC, 4 valves per cylinder

Fuel system

Tei Kei 4UC

Ignition

Electronic

Power

Torque

Lubrication system

Wet crankcase, forced circulation with mechanical lobe pump

Clutch

Automatic centrifugal dry clutch

Gearbox

Ratios

Primary drive

Final drive

Belt

Starting system

Electronic

Frame

High tensile tubular steel. Single spar at front, upper double cradle at rear.

Front suspension

35 mm hydraulic fork with forward mounted wheel, 90 mm travel

Rear suspension

Engine unit acting as swinging arm; fixed to frame by double link arm on two silent block mountings. Two rising rate hydraulic shock absorbers, 5 position pre-load adjustment, 104 mm travel

Rake / Traill

Wheels

Light alloy, 5 tangential spokes.

Front whell

Rear whell

Front tyre

130/70-12

Back tyre

130/70-12

Front brakes

single 220 mm disc with 2-piston calipers

Rear brakes

single 220 mm disc with 2-piston calipers

Overall length

1865 mm (73.4 inches)

Overall width

770 mm (30.3 inches)

Overall height

1410 mm (55.5 inches)

Seat height

Wheelbase

1340 mm (52.8 inches)

Ground clearance

Fuel capacity - reserve

9.6 l (2.5 gallon US) - 1.5 l (0.4 gallon US)

Dry weight
