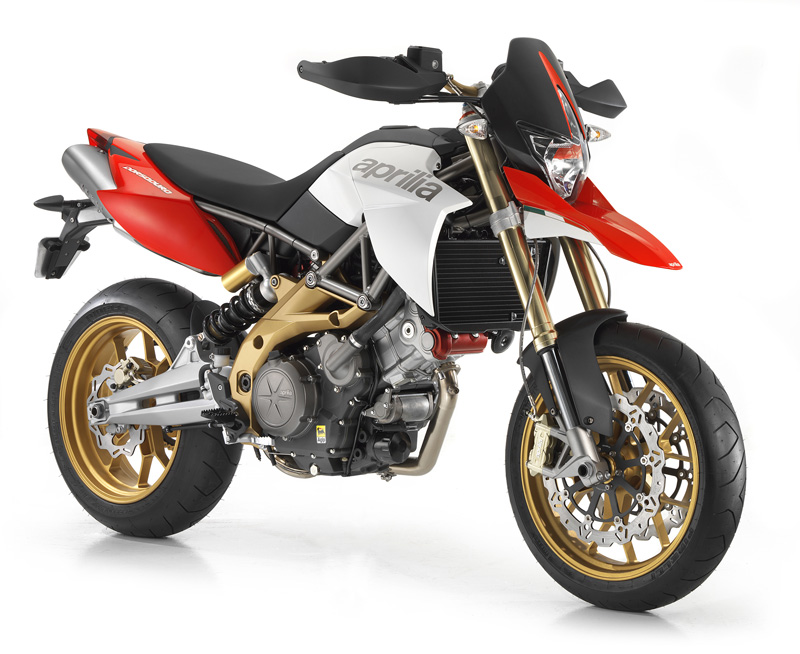

Aprilia SMV 750 Dorsoduro 2008 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2008 , Category : Supermoto , Type : 749.9 cc, liquid cooled, 90Â° v-twin, 4-stroke , Bore x stroke (mm) : 92 mm x 56.4

Details:

Aprilia SMV 750 Dorsoduro 2008 motorcycles specifications
read comments (-)	\|	add comments

Year

2008

Category

Supermoto

Type

749.9 cc, liquid cooled, 90Â° v-twin, 4-stroke

Bore x stroke (mm)

92 mm x 56.4 mm

Compression ratio

11:1

Valves

Double overhead camshaft with mixed gear/chain drive, 4 valves per cylinder

Fuel system

Integrated engine management system. Injection with Ride by Wire technology control of the throttle bodies

Ignition

Digital electronic, integrated with the injection

Power

Torque

Lubrication system

Wet sump

Clutch

Hydraulically operated multi-plate wet clutch.

Gearbox

6 speed

Ratios

1e 36/14 (2.57), 2nd 32/17 (1.88), 3th 30/20 (1.5), 4th 28/22 (1.27), 5th 23/26 (0.88), 6th 24/25 (0.96)

Primary drive

60/31 (1.75)

Final drive

Chain, 16/44

Starting system

Electronic

Frame

Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame.

Front suspension

43 mm upside-down fork, 167 mm travel

Rear suspension

Aluminium alloy swingarm. Hydraulic shock absorber adjustable in spring preload and rebound damping., 150 mm travel

Rake / Traill

Wheels

Aluminium alloy

Front whell

Rear whell

Front tyre

120/70-17

Back tyre

180/55-17

Front brakes

dual 320 mm discs with radial-mounted 4-piston calipers

Rear brakes

single 245 mm disc with 1-piston calipers

Overall length

2216 mm (87.2 inches)

Overall width

870 mm (34.3 inches)

Overall height

1180 mm (46.5 inches)

Seat height

870 mm (34.3 inches)

Wheelbase

1115 mm (43.9 inches)

Ground clearance

Fuel capacity - reserve

12 l (3.2 gallon US)

Dry weight
