Aprilia Tuono 125 2003 motorcycles specifications
read comments (-) | add comments
Year  2003
Category  Naked bike
Type  125 cc, liquid cooled, single cylinder, 2-stroke
Bore x stroke (mm)  54 mm x 54.5 mm
Compression ratio  12.5:1
Valves  -
Fuel system  DellOrto PHBH 28 BD
Ignition  CDI capacitor discharge electronic ignition
Power  -
Torque  -
Lubrication system  -
Clutch  Multiple disk in oil bath
Gearbox  6 speed
Ratios  -
Primary drive  -
Final drive  Chain
Starting system  Kick
Frame  Cast aluminium sloping twin-spar with thin walled structural shell and cross rib reinforcement
Front suspension  Upside-down hydraulic action telescopic fork, 40 mm À˜ inners, 120 mm travel
Rear suspension  Cast aluminium swing-arm with asymmetrical members and thin walled structural shell. Hydraulic monoshock with adjustable spring preload, 120 mm travel
Rake / Traill  -
Wheels  -
Front whell  -
Rear whell  -
Front tyre  110/70-17
Back tyre  150/60-17
Front brakes  single 320 mm disc with 4-piston calipers
Rear brakes  single 220 mm disc with 2-piston calipers
Overall length  1950 mm (76.8 inches)
Overall width  720 mm (28.3 inches)
Overall height  1135 mm (44.7 inches)
Seat height  805 mm (31.7 inches)
Wheelbase  1345 mm (53 inches)
Ground clearance  -
Fuel capacity - reserve  14 l (3.7 gallon US)
Dry weight  -
go to top
ApriliaAn XML error occurred on line 14: not well-formed (invalid token)

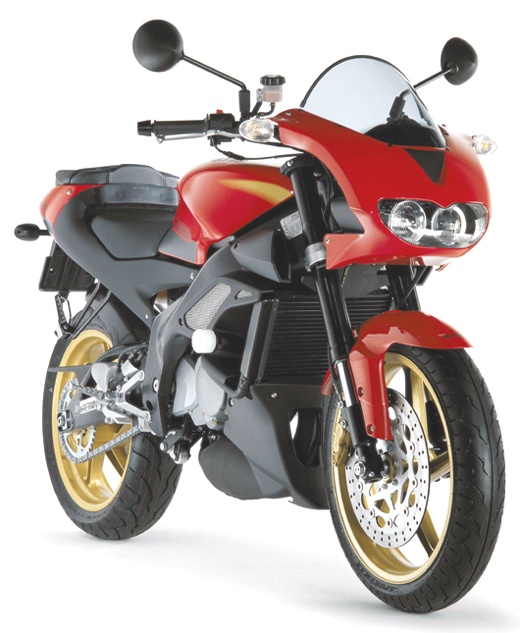

Aprilia Tuono 125 2003+Enlarge Image
