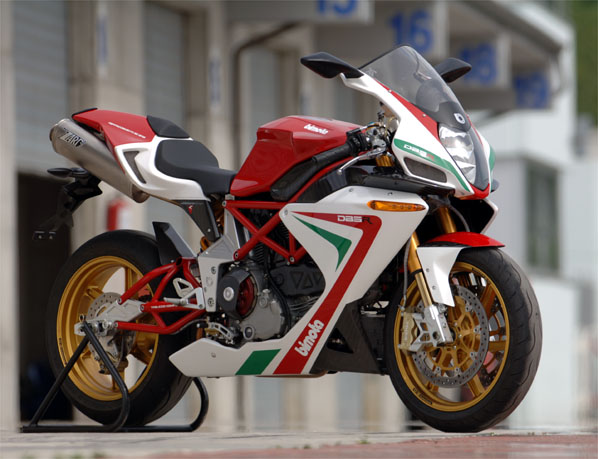

Bimota DB5R 2008 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2008 , Category : Sport , Type : 1079 cc, oil/air cooled, 90Â° l-twin, 4-stroke , Bore x stroke (mm) : 98 mm x 71.5 mm

Details:

Bimota DB5R 2008 motorcycles specifications
read comments (-)	\|	add comments

Year

2008

Category

Sport

Type

1079 cc, oil/air cooled, 90Â° l-twin, 4-stroke

Bore x stroke (mm)

98 mm x 71.5 mm

Compression ratio

10Â±0.5:1

Valves

Desmodromic, 2 valves per cylinder

Fuel system

Electronic fuel injection - 45mm throttle body

Ignition

Power

95 hp (70.8 kW) @ 7000 rpm

Torque

103 Nm (76 ft. lbs) @ 5500 rpm

Lubrication system

Wet sump

Clutch

Oil bath multi-plate with hydraulic control;Slipper Clutch

Gearbox

6 speed

Ratios

1e 28/24, 2nd 24/23, 3th 22/24, 4th 20/27, 5th 17/30, 6th 15/37

Primary drive

33/61

Final drive

Chain, 15/38

Starting system

Electronic

Frame

Front suspension

43mm UD Ã–hlins TIN Coated Fork, fully adjustable (Pre-load, Compression, Rebound), 120 mm travel

Rear suspension

Ã–hlins Monoshock, fully adjustable (Pre-load - External Hydraulic Device, Compression, Rebound), 120 mm travel

Rake / Traill

Wheels

OZ Racing Forged Alluminium

Front whell

Rear whell

Front tyre

120/70-17

Back tyre

180/55-17

Front brakes

dual 320 mm discs with radial-mounted 4-piston calipers

Rear brakes

single 230 mm disc with 2-piston calipers

Overall length

2180 mm (85.8 inches)

Overall width

750 mm (29.5 inches)

Overall height

1230 mm (48.4 inches)

Seat height

810 mm (31.9 inches)

Wheelbase

1425 mm (56.1 inches)

Ground clearance

130 mm (5.1 inches)

Fuel capacity - reserve

15 l (4 gallon US)

Dry weight

169 kg (372.6 pounds)
