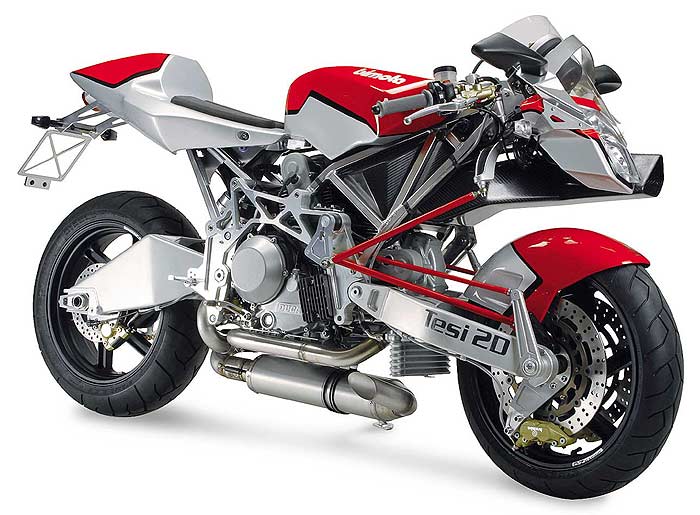

Bimota Tesi 2D 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Sport , Type : 992 cc, air cooled, l-twin, 4-stroke , Bore x stroke (mm) : 94 mm x 71.5 mm , Co

Details:

Bimota Tesi 2D 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Sport

Type

992 cc, air cooled, l-twin, 4-stroke

Bore x stroke (mm)

94 mm x 71.5 mm

Compression ratio

10.5:1

Valves

Desmodromic, 2 valves per cylinder

Fuel system

Electronic Fuel inhection, 45mm trottle body

Ignition

Power

92 hp (68.6 kW) @ 8000 rpm

Torque

92.2 Nm (68 ft. lbs) @ 6300 rpm

Lubrication system

Clutch

Dry multi-plate with hydraulic control

Gearbox

6 speed

Ratios

1e 37/15, 2nd 30/17, 3th 27/20, 4th 24/22, 5th 23/24, 6th 24/28

Primary drive

Straight cut gears; 32/59

Final drive

Chain, 15/38

Starting system

Electronic

Frame

Omega machined aluminium alloy

Front suspension

Progressive linkage with fulle adjustable Double system monoshock, 120 mm travel

Rear suspension

Direct linkage with fulle adjustable Double system monoshock, 120 mm travel

Rake / Traill

Wheels

6 spoke design light alloy forged

Front whell

Rear whell

Front tyre

120/70-17

Back tyre

180/55-17

Front brakes

dual 320 mm discs with 4-piston calipers

Rear brakes

single 220 mm disc with 2-piston calipers

Overall length

Overall width

Overall height

Seat height

830 mm (32.7 inches)

Wheelbase

1375 mm (54.1 inches)

Ground clearance

Fuel capacity - reserve

13 l (3.4 gallon US) - 3 l (0.8 gallon US)

Dry weight

149 kg (328.5 pounds)
