Details:

Borile B 500 CR 2004 motorcycles specifications
read comments (-) | add comments
Year  2004
Category  Naked bike
Type  487 cc, air cooled, single cylinder, 4-stroke
Bore x stroke (mm)  87 mm x 82 mm
Compression ratio  10.3:1
Valves  SOHC, 4 valves per cylinder
Fuel system  Mikuni TM 36
Ignition  electronic
Power  36 hp (26.8 kW) @ 7000 rpm
Torque  -
Lubrication system  by pump
Clutch  multidisc in oil bath
Gearbox  5 speed
Ratios  -
Primary drive  -
Final drive  Chain
Starting system  Kick
Frame  cradle of round tubes in 7020 alloy
Front suspension  Ceriani upside down fork 41, 120 mm travel
Rear suspension  mono Paioli with no levers, 145 mm travel
Rake / Traill  -
Wheels  -
Front whell  -
Rear whell  -
Front tyre  120/70-17
Back tyre  150/70-17
Front brakes  single 315 mm disc with 4-piston calipers
Rear brakes  single 220 mm disc with 2-piston calipers
Overall length  1990 mm (78.3 inches)
Overall width  720 mm (28.3 inches)
Overall height  1120 mm (44.1 inches)
Seat height  850 mm (33.5 inches)
Wheelbase  1400 mm (55.1 inches)
Ground clearance  200 mm (7.9 inches)
Fuel capacity - reserve  8.5 l (2.2 gallon US)
Dry weight  117 kg (257.9 pounds)
go to top
Borile

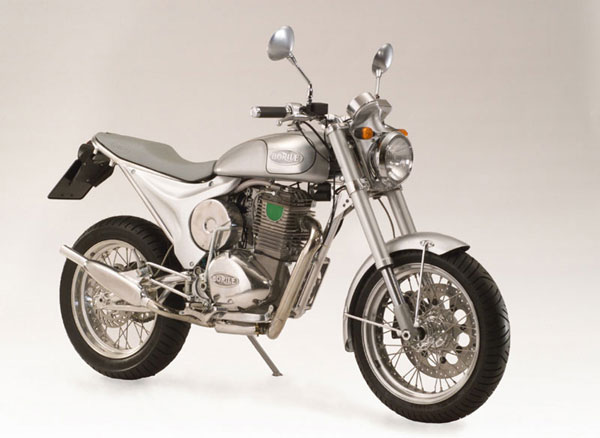

Borile B 500 CR 2004+Enlarge Image
