Details:

Buell Lightning XB12S 2006 motorcycles specifications
read comments (-) | add comments
Year  2006
Category  Naked bike
Type  1203 cc, oil/air cooled, 45° v-twin, 4-stroke
Bore x stroke (mm)  88.9 mm x 96.82 mm
Compression ratio  10:1
Valves  OHV, self adjusting, 2 valves per cylinder
Fuel system  49 mm downdraft DDFI II fuel injection
Ignition  -
Power  103 hp (76.8 kW) @ 6800 rpm
Torque  114 Nm (84.1 ft. lbs) @ 6000 rpm
Lubrication system  Dry sump
Clutch  Wet, multi-plate, compensated
Gearbox  5 speed
Ratios  1e 2.688, 2nd 1.850, 3th 1.433, 4th 1.181, 5th 1.000
Primary drive  1.500:1 (57/38)
Final drive  Belt, 2.407:1 (65/27)
Starting system  Electronic
Frame  Aluminum frame w/ Uniplanar® powertrain vibration isolation system - Fuel in Frame
Front suspension  Showa® inverted fork w/ adjustable compression damping, rebound damping and spring preload, 120 mm travel
Rear suspension  Showa coil-over monoshock w/ remote, underseat reservoir and adjustable compression damping, rebound damping and spring preload, 127 mm travel
Rake / Traill  -
Wheels  6-spoke, cast aluminum; Translucent Amber
Front whell  -
Rear whell  -
Front tyre  120/70-17
Back tyre  180/55-17
Front brakes  single 375 mm disc with 6-piston calipers
Rear brakes  single 240 mm disc with 1-piston calipers
Overall length  1935 mm (76.2 inches)
Overall width  755 mm (29.7 inches)
Overall height  1075 mm (42.3 inches)
Seat height  765 mm (30.1 inches)
Wheelbase  1318 mm (51.9 inches)
Ground clearance  110 mm (4.3 inches)
Fuel capacity - reserve  14 l (3.7 gallon US) - 2.6 l (0.7 gallon US)
Dry weight  179 kg (394.6 pounds)
go to top
BuellSo far, nothing for that!

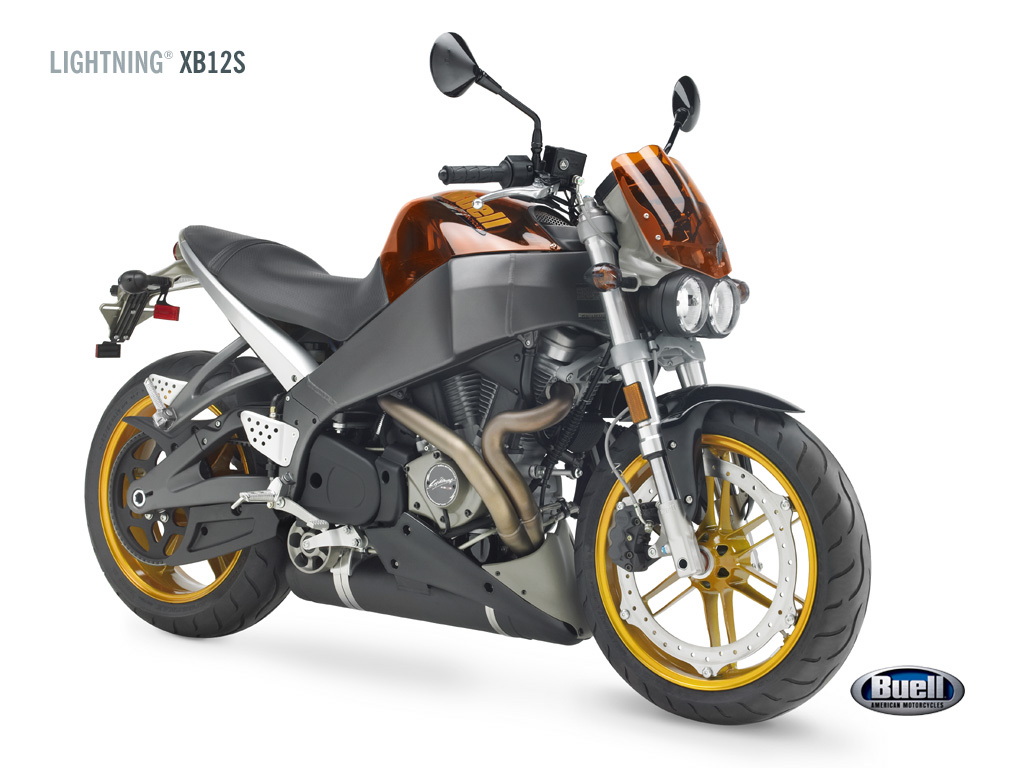

Buell Lightning XB12S 2006+Enlarge Image
