Details:

Cagiva Raptor 125 2007 motorcycles specifications
read comments (-) | add comments
Year  2007
Category  Naked bike
Type  124.63 cc, liquid cooled, single cylinder, 2-stroke
Bore x stroke (mm)  56 mm x 50.6 mm
Compression ratio  7.4:1
Valves  -
Fuel system  DELL`ORTO PHBH 28 BD
Ignition  C.D.I. with variable spark advance
Power  15 hp (11.2 kW) @ 900 rpm
Torque  -
Lubrication system  -
Clutch  -
Gearbox  6 speed
Ratios  1e 2.727 (30/11), 2nd 1.857 (26/14), 3th 1.353 (23/17), 4th 1.095 (23/21), 5th 0.956 (22/23), 6th 0.864 (19/22)
Primary drive  -
Final drive  Chain
Starting system  Electronic
Frame  Aluminium double extruded beam with cast head pipe and rear plates
Front suspension  Marzocchi Upside-Down telescopic hydraulic fork, 120 mm travel
Rear suspension  Sachs progressive with hydraulic shock absorber;, 140 mm travel
Rake / Traill  -
Wheels  Light alloy
Front whell  -
Rear whell  -
Front tyre  110/70-17
Back tyre  150/60-17
Front brakes  single 320 mm disc with 4-piston calipers
Rear brakes  single 230 mm disc with 1-piston calipers
Overall length  1980 mm (78 inches)
Overall width  750 mm (29.5 inches)
Overall height  1040 mm (40.9 inches)
Seat height  800 mm (31.5 inches)
Wheelbase  1375 mm (54.1 inches)
Ground clearance  175 mm (6.9 inches)
Fuel capacity - reserve  12.5 l (3.3 gallon US)
Dry weight  125 kg (275.6 pounds)
go to top
CagivaSo far, nothing for that!

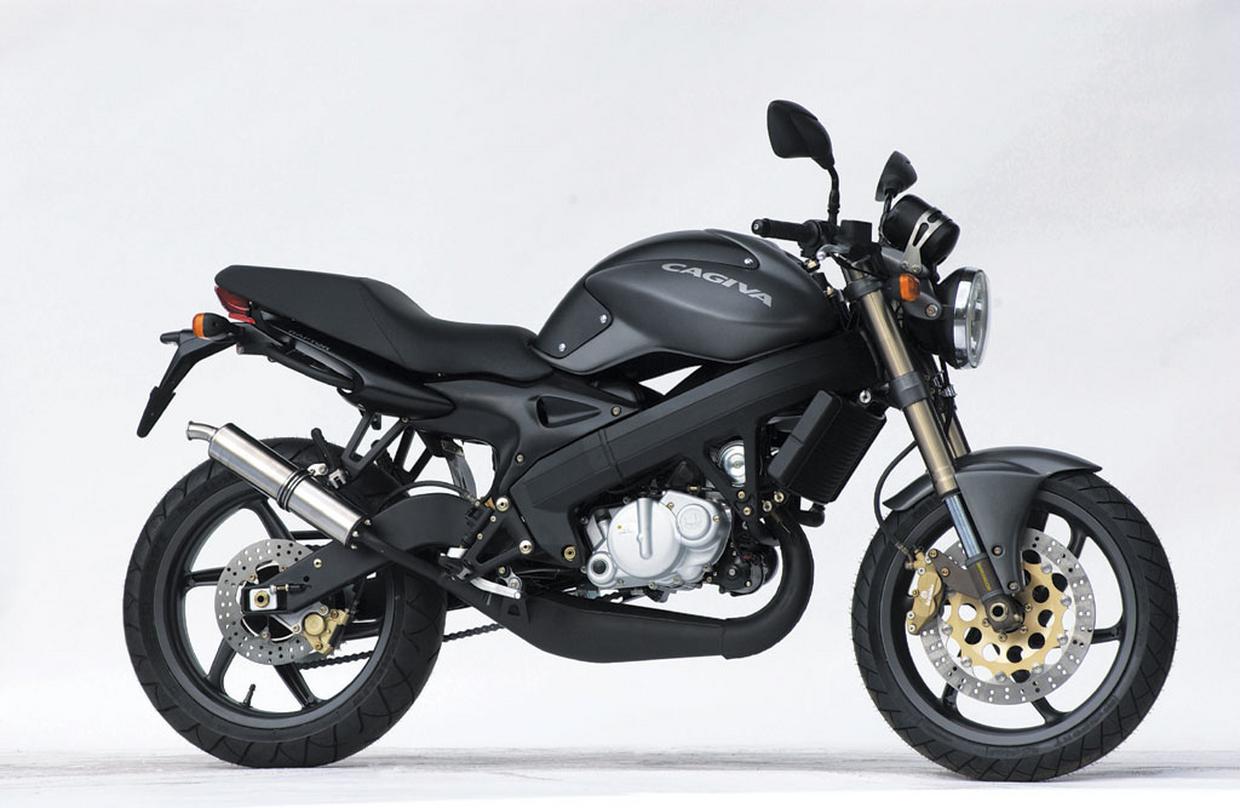

Cagiva Raptor 125 2007+Enlarge Image
