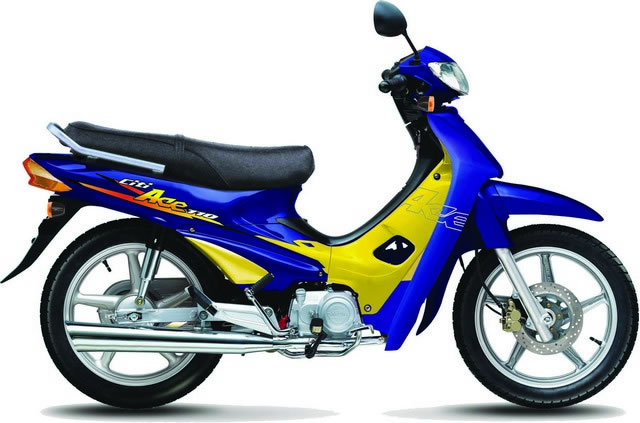

Daelim Citi Ace 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Scooter , Type : 108.9 cc, air cooled, single cylinder, 4-stroke , Bore x stroke (mm) : 50 mm x 55 mm

Details:

Daelim Citi Ace 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Scooter

Type

108.9 cc, air cooled, single cylinder, 4-stroke

Bore x stroke (mm)

50 mm x 55 mm

Compression ratio

9:1

Valves

OHC, valves per cylinder

Fuel system

PB type

Ignition

Power

Torque

Lubrication system

Clutch

Gearbox

1, automatic convertor

Ratios

Primary drive

Final drive

Belt

Starting system

Electronic & Kick

Frame

Front suspension

Telescopic fork

Rear suspension

Swing arm

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

2.75-16-4

Back tyre

3.00-16-6

Front brakes

single 220 mm disc with 2-piston calipers

Rear brakes

130 mm drum

Overall length

1910 mm (75.2 inches)

Overall width

700 mm (27.6 inches)

Overall height

1080 mm (42.5 inches)

Seat height

765 mm (30.1 inches)

Wheelbase

1220 mm (48 inches)

Ground clearance

150 mm (5.9 inches)

Fuel capacity - reserve

4 l (1.1 gallon US)

Dry weight

96 kg (211.6 pounds)
