Harley-Davidson XL 1200 C Sportster Custom 2006 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2006 , Category : Cruiser , Type : 1202 cc, air cooled, v-twin, 4-stroke , Bore x stroke (mm) : 88.8 mm x 96.8 mm ,

Details:

Harley-Davidson XL 1200 C Sportster Custom 2006 motorcycles specifications
read comments (-)	\|	add comments

Year

2006

Category

Cruiser

Type

1202 cc, air cooled, v-twin, 4-stroke

Bore x stroke (mm)

88.8 mm x 96.8 mm

Compression ratio

10 (US:9.7):1

Valves

2 valves per cylinder

Fuel system

Carburator

Ignition

Power

Torque

107 Nm (78.9 ft. lbs) @ 3500 rpm

Lubrication system

Clutch

9-plate, wet

Gearbox

5 speed

Ratios

1e 9.01 (US: 9.315), 2nd 6.43 (US: 6.653), 3th 4.79 (US: 4.948), 4th 3.98 (US: 4.102), 5th 3.40 (US: 3.517)

Primary drive

57/38

Final drive

Belt, 68/29

Starting system

Electronic

Frame

Mild steel, tubular frame, circular sections, cast junctions

Front suspension

39 mm conventional fork, 141 mm travel

Rear suspension

Coil-over, dual-adjustable preload, 61 mm travel

Rake / Traill

Wheels

cast aluminum

Front whell

Rear whell

Front tyre

MH90-21

Back tyre

150/80-16

Front brakes

single 292 mm disc with 2-piston calipers

Rear brakes

single 292 mm disc with 1-piston calipers

Overall length

2293.6 mm (90.3 inches)

Overall width

Overall height

Seat height

673.1 mm (26.5 inches)

Wheelbase

1534.2 mm (60.4 inches)

Ground clearance

111.8 mm (4.4 inches)

Fuel capacity - reserve

17 l (4.5 gallon US) - 3.8 l (1 gallon US)

Dry weight

261 kg (575.4 pounds)

go to top

Harley-DavidsonSo far, nothing for that!

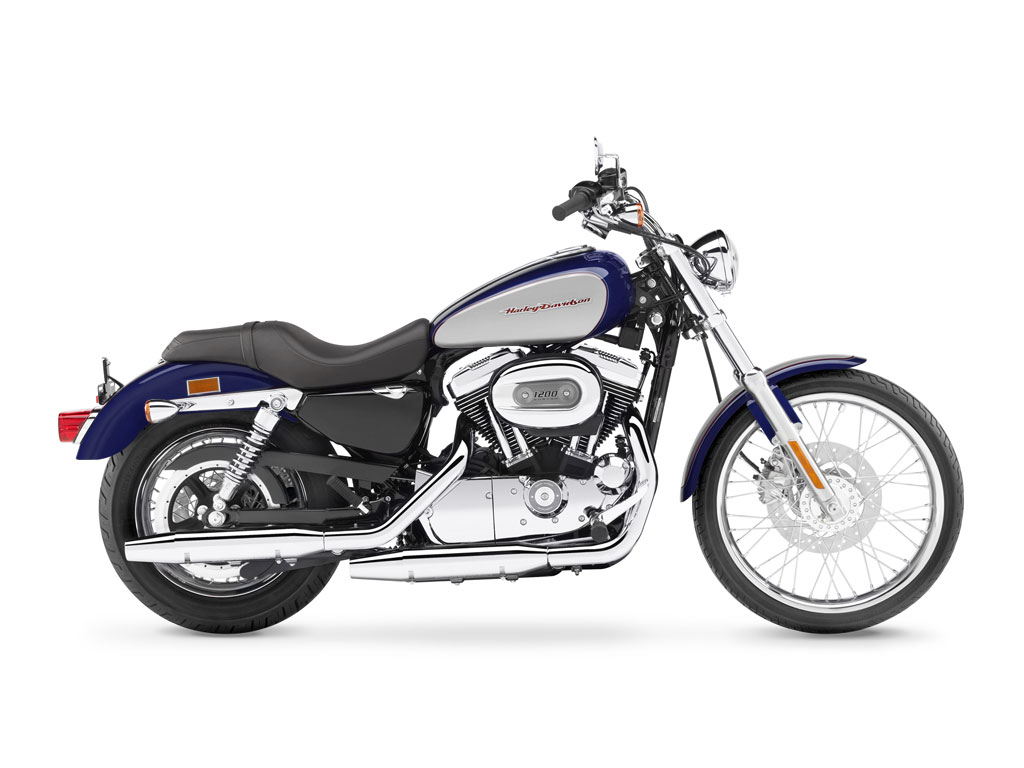

Harley-Davidson XL 1200 C Sportster Custom 2006
