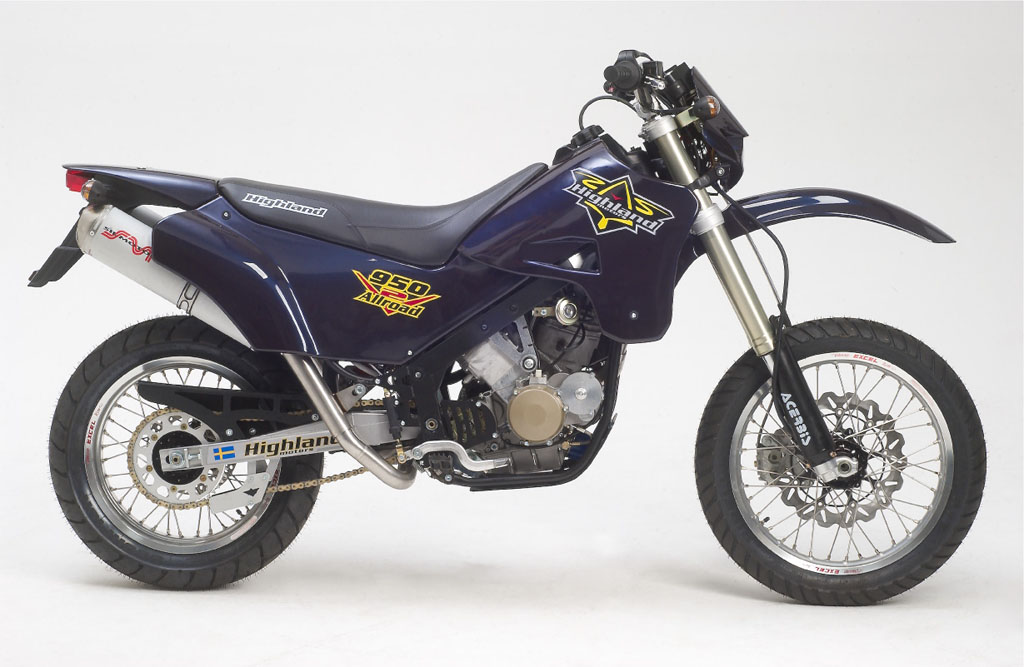

Highland 950 V2 Allroad 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : All-road , Type : 936 cc, liquid cooled, 60Â° v-twin, 4-stroke , Bore x stroke (mm) : 95 mm x 66 mm

Details:

Highland 950 V2 Allroad 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

All-road

Type

936 cc, liquid cooled, 60Â° v-twin, 4-stroke

Bore x stroke (mm)

95 mm x 66 mm

Compression ratio

10:1

Valves

DOHC, 4 valves per cylinder

Fuel system

Injection

Ignition

Integrated engine management system with ignition coils fitted directly on the spark plugs

Power

85 hp (63.4 kW) @ 6000 rpm

Torque

104 Nm (76.7 ft. lbs) @ 4000 rpm

Lubrication system

Wet sump, double filter, pressure pump to crank, cams and gearbox

Clutch

separately lubricated mult disk clutch

Gearbox

6 speed

Ratios

Primary drive

Final drive

Chain

Starting system

Electronic

Frame

Front suspension

48 mm USD WP or 50 mm Marzocchi. adjustable compression and rebound, 280 mm travel

Rear suspension

WP or Ã–hlins, adjustable stiffness, compression and rebound, 300 mm travel

Rake / Traill

Wheels

Excel aluminium rims with Talon hubs

Front whell

Rear whell

Front tyre

100/90-19

Back tyre

150/70-17

Front brakes

single 320 mm disc with 2-piston calipers

Rear brakes

single 240 mm disc with 1-piston calipers

Overall length

Overall width

Overall height

Seat height

840 mm (33.1 inches)

Wheelbase

1500 mm (59.1 inches)

Ground clearance

230 mm (9.1 inches)

Fuel capacity - reserve

20 l (5.3 gallon US)

Dry weight

164 kg (361.6 pounds)
