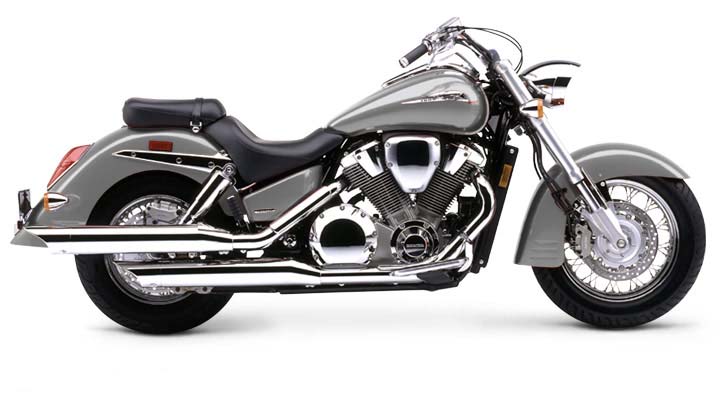

Honda VTX 1800 Retro Spoke 2003 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2003 , Category : Cruiser , Type : 1795 cc, liquid cooled, v-twin, 4-stroke , Bore x stroke (mm) : 101 mm x 112 mm ,

Details:

Honda VTX 1800 Retro Spoke 2003 motorcycles specifications
read comments (-)	\|	add comments

Year

2003

Category

Cruiser

Type

1795 cc, liquid cooled, v-twin, 4-stroke

Bore x stroke (mm)

101 mm x 112 mm

Compression ratio

9:1

Valves

SOHC, 3 valves per cylinder

Fuel system

Programmed Fuel Injection (PGM-FI) with automatic choke

Ignition

Solid-state digital, two spark plugs per cylinder

Power

107 hp (79.8 kW) @ 5000 rpm

Torque

163 Nm (120.2 ft. lbs) @ 3000 rpm

Lubrication system

Clutch

Gearbox

5 speed

Ratios

Primary drive

Final drive

Cardan

Starting system

Electronic

Frame

Front suspension

45mm inverted fork, 130 mm travel

Rear suspension

Dual shocks with five-position spring-preload adjustability, 100 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

150/80-17

Back tyre

170/80-15

Front brakes

dual 296 mm discs with 3-piston calipers

Rear brakes

single 316 mm disc with 3-piston calipers

Overall length

2456 mm (96.7 inches)

Overall width

932 mm (36.7 inches)

Overall height

1128 mm (44.4 inches)

Seat height

693 mm (27.3 inches)

Wheelbase

1715 mm (67.5 inches)

Ground clearance

130 mm (5.1 inches)

Fuel capacity - reserve

17 l (4.5 gallon US) - 3,5 l (0.9 gallon US)

Dry weight

320 kg (705.5 pounds)
