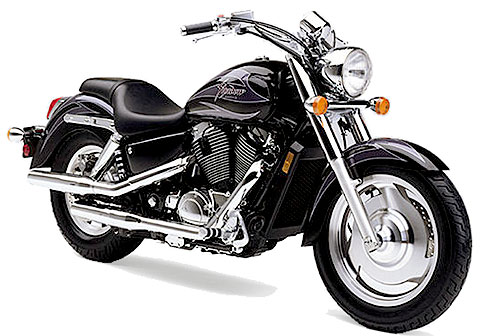

Honda VT 1100 C2 Shadow Sabre 2004 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2004 , Category : Cruiser , Type : 1099 cc, water cooled, 45Â° v-twin, 4-stroke , Bore x stroke (mm) : 87.5 mm x 91.4 mm

Details:

Honda VT 1100 C2 Shadow Sabre 2004 motorcycles specifications
read comments (-)	\|	add comments

Year

2004

Category

Cruiser

Type

1099 cc, water cooled, 45Â° v-twin, 4-stroke

Bore x stroke (mm)

87.5 mm x 91.4 mm

Compression ratio

8:1

Valves

SOHC, 3 valves per cylinder

Fuel system

36mm CV

Ignition

Solid-state digital, two spark plugs per cylinder

Power

50.3 hp (37.5 kW) @ 4500 rpm

Torque

88.2 Nm (65.1 ft. lbs) @ 2500 rpm

Lubrication system

Clutch

Gearbox

5 speed

Ratios

Primary drive

Final drive

Cardan

Starting system

Electronic

Frame

Front suspension

41mm fork, 150 mm travel

Rear suspension

Dual shocks with five-position spring-preload adjustability, 110 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

120/90-18

Back tyre

170/80-15

Front brakes

single 316 mm disc with 2-piston calipers

Rear brakes

single 276 mm disc with 1-piston calipers

Overall length

2440 mm (96.1 inches)

Overall width

965 mm (38 inches)

Overall height

1160 mm (45.7 inches)

Seat height

730 mm (28.7 inches)

Wheelbase

1650 mm (65 inches)

Ground clearance

Fuel capacity - reserve

15 l (4 gallon US) - 3,5 l (0.9 gallon US)

Dry weight

261 kg (575.4 pounds)
