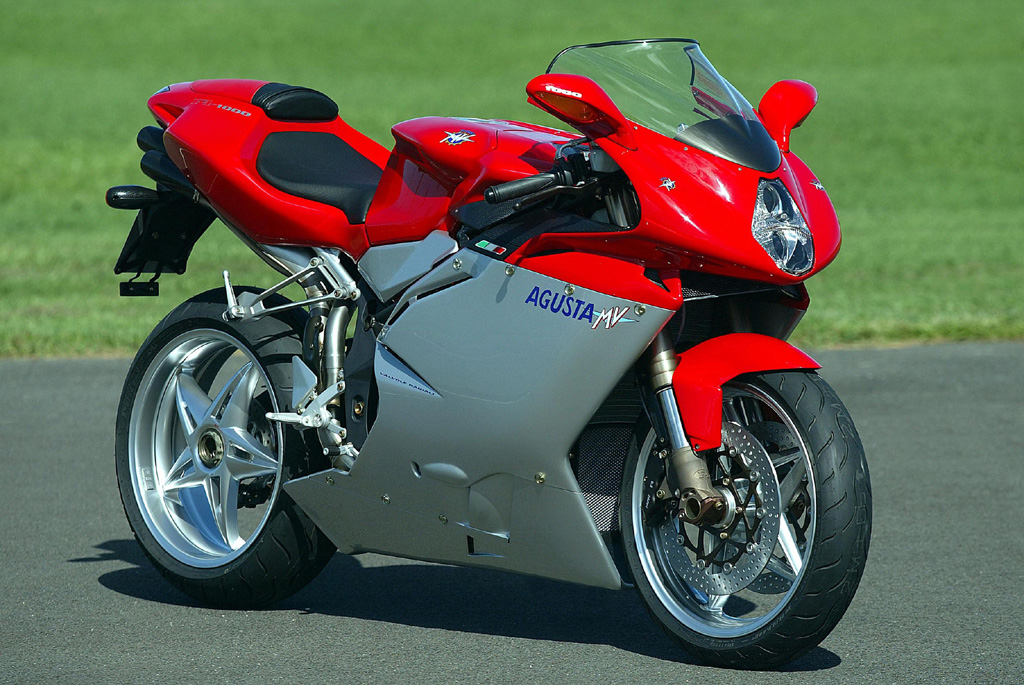

MV Agusta F4 1000 S 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Sport , Type : 998 cc, liquid cooled, 4 - cylinders in line, 4-stroke , Bore x stroke (mm) : 76 mm x 5

Details:

MV Agusta F4 1000 S 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Sport

Type

998 cc, liquid cooled, 4 - cylinders in line, 4-stroke

Bore x stroke (mm)

76 mm x 55 mm

Compression ratio

12:1

Valves

DOHC, 4 valves per cylinder

Fuel system

Injection integrated system, Multipoint electronic injection

Ignition

Weber Marelli 1,6 M ignition

Power

166 hp (123.8 kW) @ 12750 rpm

Torque

109 Nm (80.4 ft. lbs) @ 10200 rpm

Lubrication system

Clutch

Wet, multi - disc

Gearbox

6 speed

Ratios

1e 13/38, 2nd 16/34, 3th 18/32, 4th 20/30, 5th 22/29, 6th 21/25

Primary drive

50/79

Final drive

Chain, 16x41

Starting system

Electronic

Frame

CrMo Steel tubular trellis (TIG welded), Rear swing arm pivot plates: material aluminium alloy

Front suspension

Inverted (USD) telescopic hydraulic fork with rebound-compression damping and spring preload adjustment, Titanium Nitride anti-friction treatment , 118 mm travel

Rear suspension

Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload (hydraulic control) , 120 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

120/65-17

Back tyre

180/55-17

Front brakes

dual 310 mm discs with 6-piston calipers

Rear brakes

single 210 mm disc with 4-piston calipers

Overall length

2007 mm (79 inches)

Overall width

685 mm (27 inches)

Overall height

Seat height

810 mm (31.9 inches)

Wheelbase

1408 mm (55.4 inches)

Ground clearance

130 mm (5.1 inches)

Fuel capacity - reserve

21 l (5.5 gallon US) - 4 l (1.1 gallon US)

Dry weight

192 kg (423.3 pounds)
