MV Agusta F4 Brutale S 2005 motorcycles specifications
read comments (-) | add comments
Year  2005
Category  Naked bike
Type  749 cc, liquid cooled, 4 - cylinders in line, 4-stroke
Bore x stroke (mm)  73.8 mm x 43.8 mm
Compression ratio  12:1
Valves  DOHC, 4 valves per cylinder
Fuel system  injection integrated system; “Multipoint” electronic injection
Ignition  “Weber Marelli” 1,6 M ignition - induction discharge electronic ignition,
Power  127 hp (94.7 kW) @ 12500 rpm
Torque  77.4 Nm (57.1 ft. lbs) @ 10500 rpm
Lubrication system  -
Clutch  Wet, multi - disc
Gearbox  6 speed
Ratios  1e 13/38, 2nd 14/31, 3th 18/32, 4th 20/30, 5th 22/29, 6th 19/23
Primary drive  47/81
Final drive  Chain, 14/41
Starting system  Electronic
Frame  CrMo Steel tubular trellis (TIG welded)
Front suspension  “UPSIDE - DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload adjustment, 118 mm travel
Rear suspension  Progressive,single shock absorber with rebound - compression damping and spring preload (F4 SPR, F4 Agostini and F4 Brutalerear suspension fully adjustable), 120 mm travel
Rake / Traill  -
Wheels  Aluminium alloy
Front whell  -
Rear whell  -
Front tyre  120/65-17
Back tyre  190/50-17
Front brakes  dual 310 mm discs with 6-piston calipers
Rear brakes  single 210 mm disc with 4-piston calipers
Overall length  2026 mm (79.8 inches)
Overall width  820 mm (32.3 inches)
Overall height  -
Seat height  805 mm (31.7 inches)
Wheelbase  1414 mm (55.7 inches)
Ground clearance  135 mm (5.3 inches)
Fuel capacity - reserve  19 l (5 gallon US) - 4 l (1.1 gallon US)
Dry weight  185 kg (407.9 pounds)
go to top
MV-AgustaSo far, nothing for that!

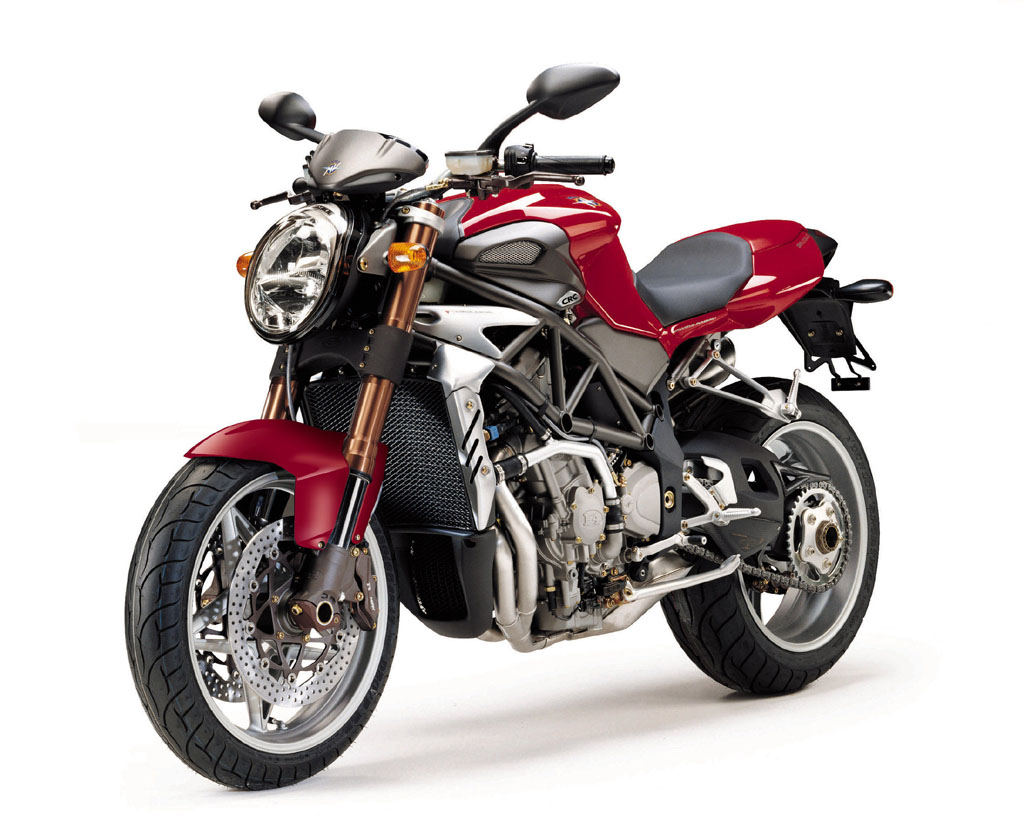

MV Agusta F4 Brutale S 2005+Enlarge Image
