Year : 2006 , Category : All-road , Type : 196 cc, air cooled, single cylinder, 4-stroke , Bore x stroke (mm) : 67 mm x 55.7 mm

Details:

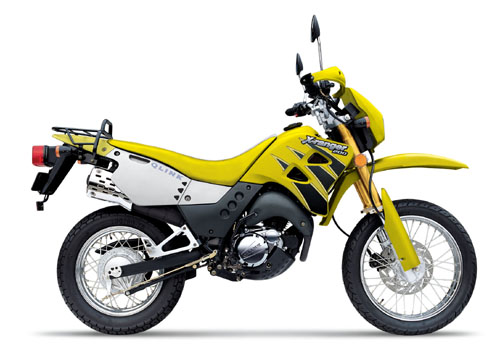

Qlink X-Ranger 2006 motorcycles specifications
read comments (-)	\|	add comments

Year

2006

Category

All-road

Type

196 cc, air cooled, single cylinder, 4-stroke

Bore x stroke (mm)

67 mm x 55.7 mm

Compression ratio

9.5:1

Valves

OHC, -1 valves per cylinder

Fuel system

Ignition

CDI

Power

14.7 hp (11 kW)

Torque

14.5 Nm (10.7 ft. lbs) @ 6500 rpm

Lubrication system

Clutch

Gearbox

5 speed

Ratios

Primary drive

Final drive

Chain

Starting system

Electronic

Frame

Front suspension

Hydraulic Compound Spring

Rear suspension

Hydraulic Compound Spring

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

100/90-18

Back tyre

130/90-15

Front brakes

single disc with 2-piston calipers

Rear brakes

Overall length

2180 mm (85.8 inches)

Overall width

810 mm (31.9 inches)

Overall height

1200 mm (47.2 inches)

Seat height

720 mm (28.3 inches)

Wheelbase

1370 mm (53.9 inches)

Ground clearance

250 mm (9.8 inches)

Fuel capacity - reserve

8 l (2.1 gallon US)

Dry weight

135 kg (297.6 pounds)
