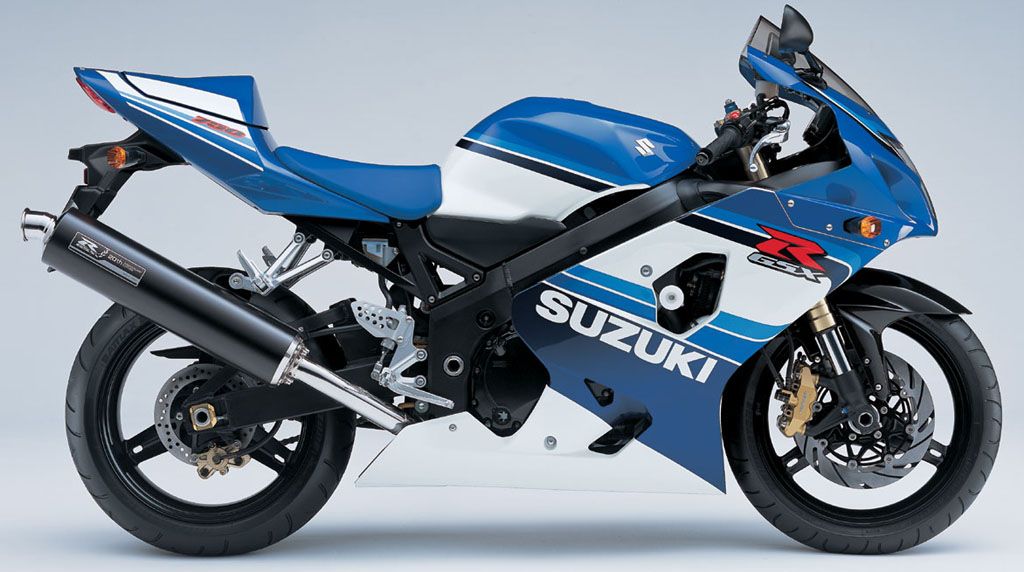

Suzuki GSX-R 750 Limited Edition 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Sport , Type : 749 cc, liquid cooled, 4 - cylinders in line, 4-stroke , Bore x stroke (mm) : 72 mm x 4

Details:

Suzuki GSX-R 750 Limited Edition 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Sport

Type

749 cc, liquid cooled, 4 - cylinders in line, 4-stroke

Bore x stroke (mm)

72 mm x 46 mm

Compression ratio

12.3:1

Valves

DOHC, 4 valves per cylinder

Fuel system

Fuel Injection

Ignition

Digital/transistorized

Power

148 hp (110.4 kW) @ 12800 rpm

Torque

86.3 Nm (63.7 ft. lbs) @ 10800 rpm

Lubrication system

Wet Sump

Clutch

Gearbox

6 speed

Ratios

Primary drive

1.857 (78/42)

Final drive

Chain, 2.529 (43/17)

Starting system

Electronic

Frame

Front suspension

Inverted telescopic, coil spring, fully adjustable spring preload, rebound and compression damping

Rear suspension

Link-type, gas/oil damped, fully adjustable spring preload, compression and rebound damping

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

120/70-17

Back tyre

180/55-17

Front brakes

dual 300 mm discs with radial-mounted 4-piston calipers

Rear brakes

single 220 mm disc with 2-piston calipers

Overall length

2055 mm (80.9 inches)

Overall width

715 mm (28.1 inches)

Overall height

1150 mm (45.3 inches)

Seat height

825 mm (32.5 inches)

Wheelbase

1400 mm (55.1 inches)

Ground clearance

135 mm (5.3 inches)

Fuel capacity - reserve

17 l (4.5 gallon US) - 5 l (1.3 gallon US)

Dry weight

163 kg (359.4 pounds)
