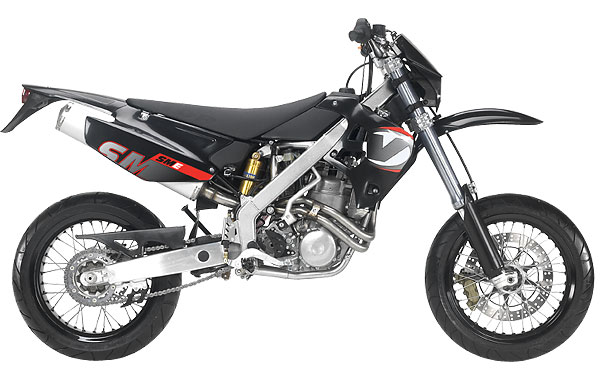

VOR SM-E 530 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Supermoto , Type : 524.67 cc, liquid cooled, single cylinder, 4-stroke , Bore x stroke (mm) : 97 mm x

Details:

VOR SM-E 530 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Supermoto

Type

524.67 cc, liquid cooled, single cylinder, 4-stroke

Bore x stroke (mm)

97 mm x 71 mm

Compression ratio

11.5:1

Valves

SOHC, 4 valves per cylinder

Fuel system

KEIHIN FCR 39

Ignition

Digital electronic oil bath

Power

Torque

Lubrication system

Clutch

Hydraulic wet multi-plate

Gearbox

5 speed

Ratios

Primary drive

31/76

Final drive

Chain, 14/38

Starting system

Electronic & Kick

Frame

Perimetral frame, CrMo, Oval cross-section spars, aluminium rear frame

Front suspension

Reversed Paioli-Kayaba fork, Ã˜ 46 mm, 265 mm travel

Rear suspension

Single progressive hydraulic Ã–hlins shock absorber, low-high speed adjustable preload extension and compression, 275 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

120/70-17

Back tyre

150/60-17

Front brakes

single 320 mm disc with 4-piston calipers

Rear brakes

single 220 mm disc with 1-piston calipers

Overall length

2100 mm (82.7 inches)

Overall width

Overall height

Seat height

898 mm (35.4 inches)

Wheelbase

1485 mm (58.5 inches)

Ground clearance

300 mm (11.8 inches)

Fuel capacity - reserve

9 l (2.4 gallon US)

Dry weight

122 kg (269 pounds)
