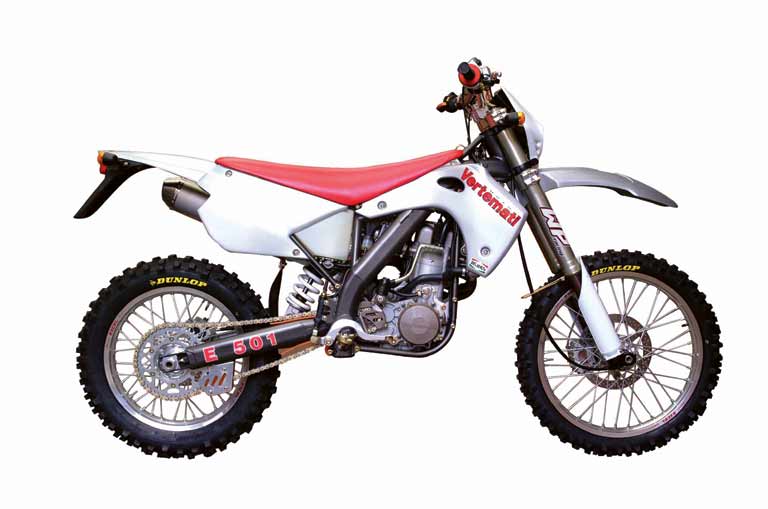

Vertemati E501 E 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Enduro-Offroad , Type : 501 cc, liquid cooled, single cylinder, 4-stroke , Bore x stroke (mm) : 92 mm

Details:

Vertemati E501 E 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Enduro-Offroad

Type

501 cc, liquid cooled, single cylinder, 4-stroke

Bore x stroke (mm)

92 mm x 75.5 mm

Compression ratio

11.6:1

Valves

SOHC, gear driven, 4 valves per cylinder

Fuel system

Dell`Orto PHM 38 ZS1

Ignition

Electronic digital Sem

Power

Torque

Lubrication system

wet sump, through oil pump with oil filter and by-pass

Clutch

in oil 8 steel plates, 7 fibre discs, sealed hydraulic operation

Gearbox

6 speed

Ratios

1e 2.13, 2nd 1.55, 3th 1.23, 4th 1.04, 5th 0.916, 6th 0.84

Primary drive

2.68 78/29

Final drive

Chain, 3.42, 14/48

Starting system

Electronic

Frame

Front suspension

WP USD 48mm Fork, Nitride legs, MXMA Multi adjust, 290 mm travel

Rear suspension

25 Cr Mo 4 steel swingarm hardened and tempered WP SUSPENSION PDS shock-absorber, 327 mm travel

Rake / Traill

Wheels

Talon hub, Excel rim

Front whell

Rear whell

Front tyre

90/90-21

Back tyre

140/80-18

Front brakes

single 260 mm disc with 2-piston calipers

Rear brakes

single 220 mm disc with 1-piston calipers

Overall length

2180 mm (85.8 inches)

Overall width

810 mm (31.9 inches)

Overall height

Seat height

930 mm (36.6 inches)

Wheelbase

1485 mm (58.5 inches)

Ground clearance

Fuel capacity - reserve

8 l (2.1 gallon US)

Dry weight

120 kg (264.6 pounds)
