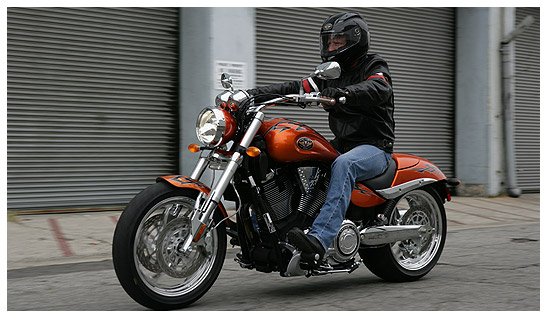

Victory Hammer 2006 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2006 , Category : Cruiser , Type : 1634 cc, oil/air cooled, 50Â° v-twin, 4-stroke , Bore x stroke (mm) : 101 mm x 102 mm

Details:

Victory Hammer 2006 motorcycles specifications
read comments (-)	\|	add comments

Year

2006

Category

Cruiser

Type

1634 cc, oil/air cooled, 50Â° v-twin, 4-stroke

Bore x stroke (mm)

101 mm x 102 mm

Compression ratio

9.8:1

Valves

Single overhead camshafts, self-adjusting cam chains, hydraulic lifters , 4 valves per cylinder

Fuel system

Electronic Fuel injection, 44mm trottle bodies

Ignition

Power

Torque

Lubrication system

Clutch

Wet, multi-plate

Gearbox

6 speed

Ratios

Primary drive

Final drive

Belt

Starting system

Electronic

Frame

Front suspension

Inverted cartridge telescopic fork, 43mm fork tube, 130 mm travel

Rear suspension

Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm;preload adjustable spring , 100 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

130/70-18

Back tyre

250/40-18

Front brakes

dual 300 mm discs with 4-piston calipers

Rear brakes

single 300 mm disc with 2-piston calipers

Overall length

2355 mm (92.7 inches)

Overall width

Overall height

Seat height

669.3 mm (26.4 inches)

Wheelbase

1668.8 mm (65.7 inches)

Ground clearance

148 mm (5.8 inches)

Fuel capacity - reserve

17 l (4.5 gallon US)

Dry weight

298.6 kg (658.3 pounds)
