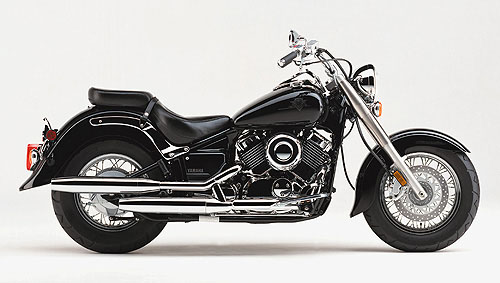

Yamaha XVS 650 Dragstar Classic 2005 motorcycles specifications

www.motorcyclesdetails.info

add to favorites

Year : 2005 , Category : Cruiser , Type : 649 cc, air cooled, 70Â° v-twin, 4-stroke , Bore x stroke (mm) : 81 mm x 63 mm ,

Details:

Yamaha XVS 650 Dragstar Classic 2005 motorcycles specifications
read comments (-)	\|	add comments

Year

2005

Category

Cruiser

Type

649 cc, air cooled, 70Â° v-twin, 4-stroke

Bore x stroke (mm)

81 mm x 63 mm

Compression ratio

9:1

Valves

OHC, 2 valves per cylinder

Fuel system

Mikuni BDS28/2

Ignition

Digital TCI

Power

40 hp (29.8 kW) @ 6500 rpm

Torque

50.1 Nm (37 ft. lbs) @ 3000 rpm

Lubrication system

Clutch

Gearbox

5 speed

Ratios

Primary drive

Final drive

Cardan

Starting system

Electronic

Frame

Front suspension

Telescopic fork, 140 mm travel

Rear suspension

Single shock, link-type, w/adjustable preload, 99 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

130/90-16

Back tyre

170/80-15

Front brakes

single 298 mm disc with 2-piston calipers

Rear brakes

200 mm drum

Overall length

2450 mm (96.5 inches)

Overall width

930 mm (36.6 inches)

Overall height

1105 mm (43.5 inches)

Seat height

710 mm (28 inches)

Wheelbase

1625 mm (64 inches)

Ground clearance

145 mm (5.7 inches)

Fuel capacity - reserve

16 l (4.2 gallon US) - 3 l (0.8 gallon US)

Dry weight

229 kg (504.9 pounds)
